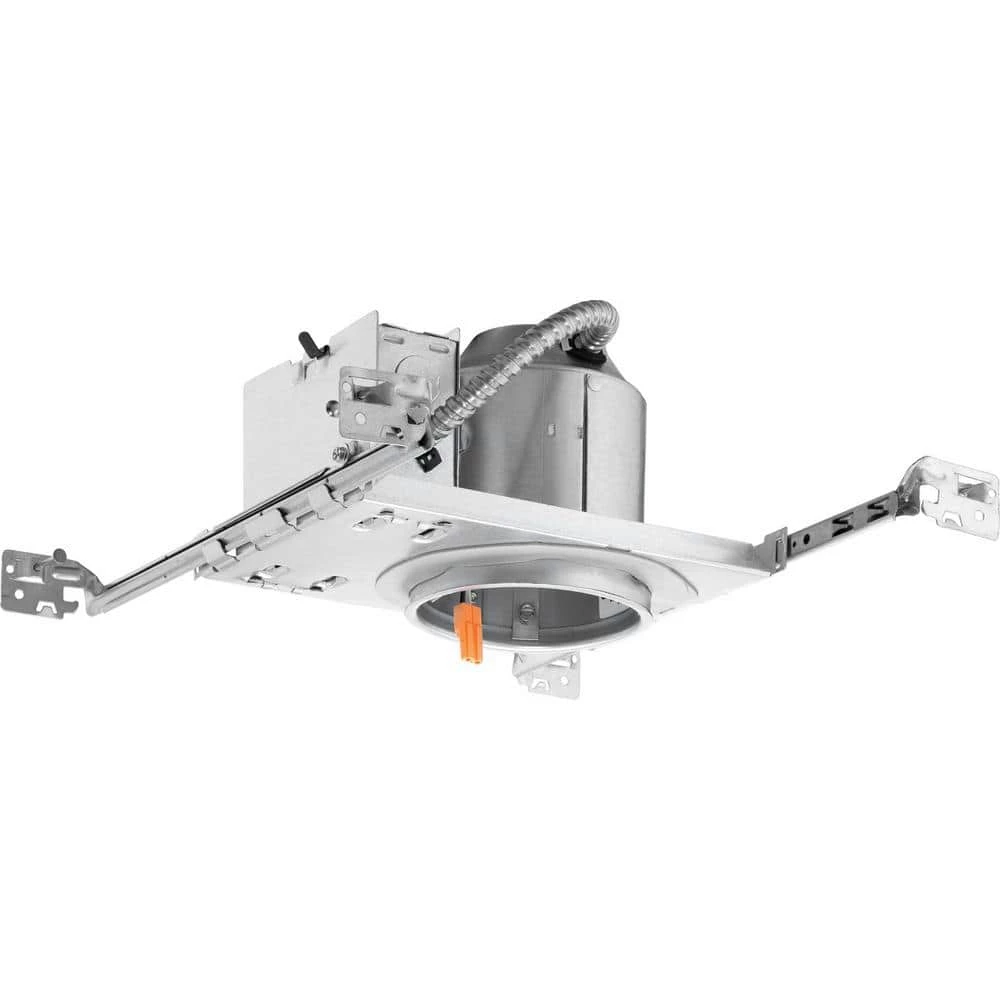

Contractor Select QC4 Quick Connect 4 in. IC Rated New Construction Recessed Housing (6-Pack) by Juno
Original price was: $79.98.$51.99Current price is: $51.99.
Features non-screw base 120V plug-in quick connector
Compatible with Juno and Lithonia retrofit LED trim modules
UL and damp location listed with a 1-year warranty
- 100% environmentally friendly material
- Have the best deals
- Guaranteed High Quality
- Safe and Secure Payments, Always
The 4 in. Juno Quick Connect housing is your lowest cost of entry for an LED downlight solution using legacy style housings that pair with LED retrofit trims for new construction applications. By utilizing the orange quick connect plug, provided as standard for electrical attachment of the LED retrofit trim to the housing, installation becomes easier than ever before. Its compact design allows for quick, easy handling while installing and allows the housing to fit into shallow ceiling areas where plenum space is limited.

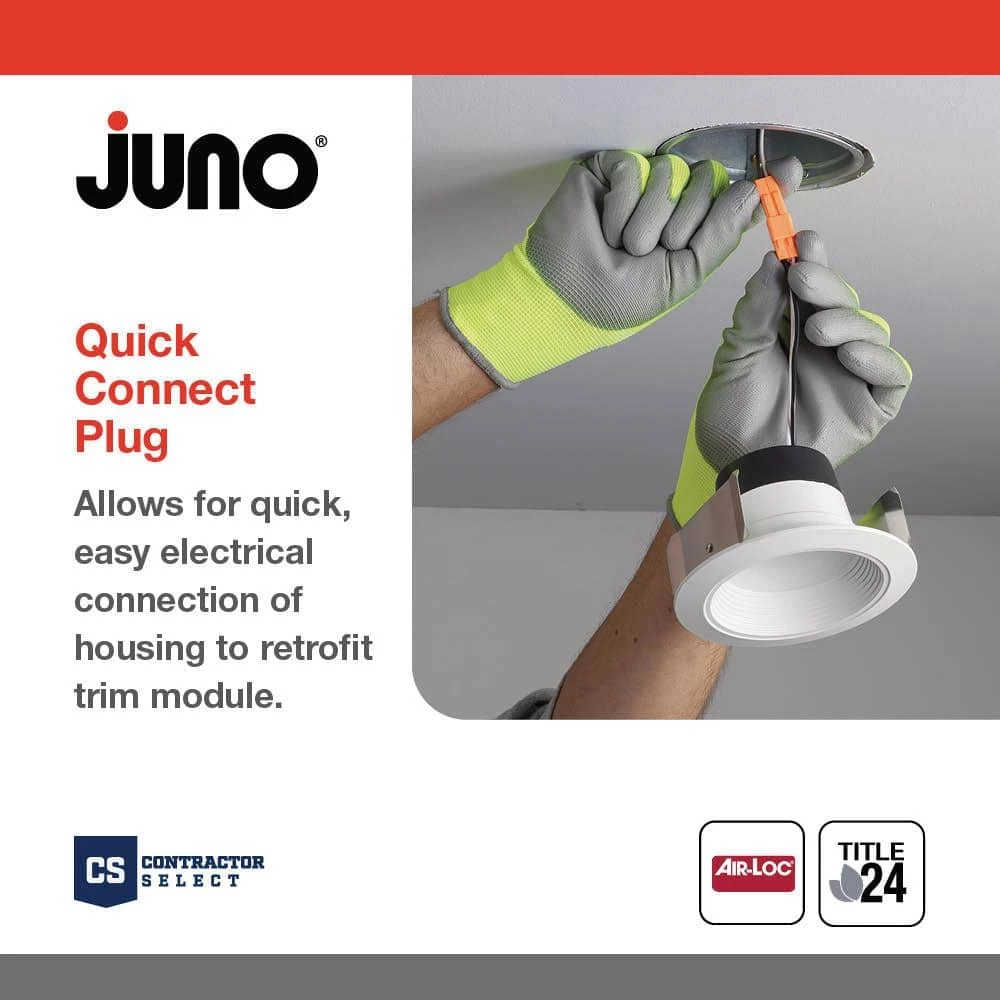

- Design: Juno quick connect housing provides an orange quick connect plug that is provided as standard for electrical attachment of the LED retrofit trim to the housing this plug allows you to quickly plug the retrofit trim straight into the housing
- Energy savings: quick connect housing offers an energy-efficient, Air-Loc sealed housing that stops ex-filtration and infiltration of air, reducing heating and cooling costs
- Compatible: quick connect housing is compatible with Acuity brands retrofit trims, including: E series, RLD series, J6RL series, G series, RLA series and Juno AI smart downlight
- Ratings/listings: can be used to comply with 2019 title 24 part 6 JA8 high efficacy LED light source requirements, UL Listed for U.S. and Canada through-branch wiring, damp locations, when used with E and RLD series, suitable for wet locations, UL and cUL

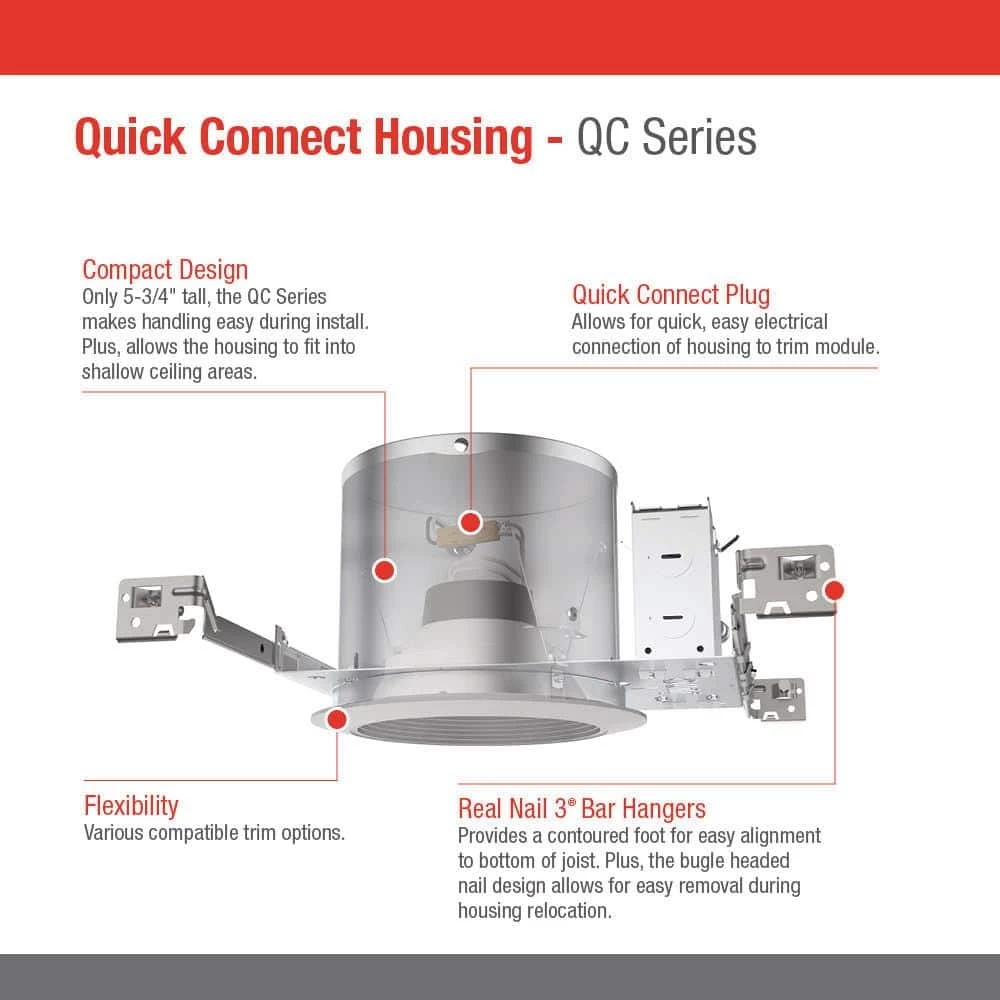

- Installation: the quick connect housing’s compact design, less than 6 in. tall, makes handling easy during installation and allows the housing to fit into shallow ceiling areas plus, the orange plug allows for quick connection from housing to trim
- Design feature benefit: designed for direct contact with insulation plus, the housing has a wide selection of compatible trim options for downlighting and accent lighting
- Emergency battery currently not available
- Warranty 1-year
- Dimensions: housing height 5-3/8 in. bar hangers 13-1/2 in. will expand to 25 in. (reduces to 8-1/2 in. with breakaway feature), ceiling cutout 4-1/2 in.
- Comes in a pack of 6 housings
- IC-rated shallow housings fits 2 in. x 6 in. construction
- Air-Loc seal to aid in reducing heating/cooling costs
| Compatible Bulb Type | LED |
|---|---|
| Reflector Finish Family | Silver |
| Maximum Cutout Size (in.) | 4.5 |
| Housing Width (in.) | 6 |
| Housing Height (in.) | 5.25 |
| Actual Aperture Width (in.) | 4.5 |
| Manufacturer Warranty | 1 Year Limited Warranty |
| Certifications and Listings | cULus Listed |
| Voltage | Line Voltage |
| Trim Type | Baffle,Gimbal |
| Returnable | 90-Day |
| Product Weight (lb.) | 21.268 lb |
| Damp/Wet Rating | Damp Rated |
| Package Quantity | 6 |
| Number of Housings Included | 6 |
| New Construction or Remodel | New Construction |
| Maximum Bulb Wattage | 100 |
| Light Bulb Base Code | No Base |
| Indoor/Outdoor | Indoor |
| Included | Gasket(s),Mounting Brackets,Wiring Connectors |
| IC Rating | IC Rated |
| Features | Air Tight |
| Nominal Lens Aperture Size | 4 in. |
